MgS

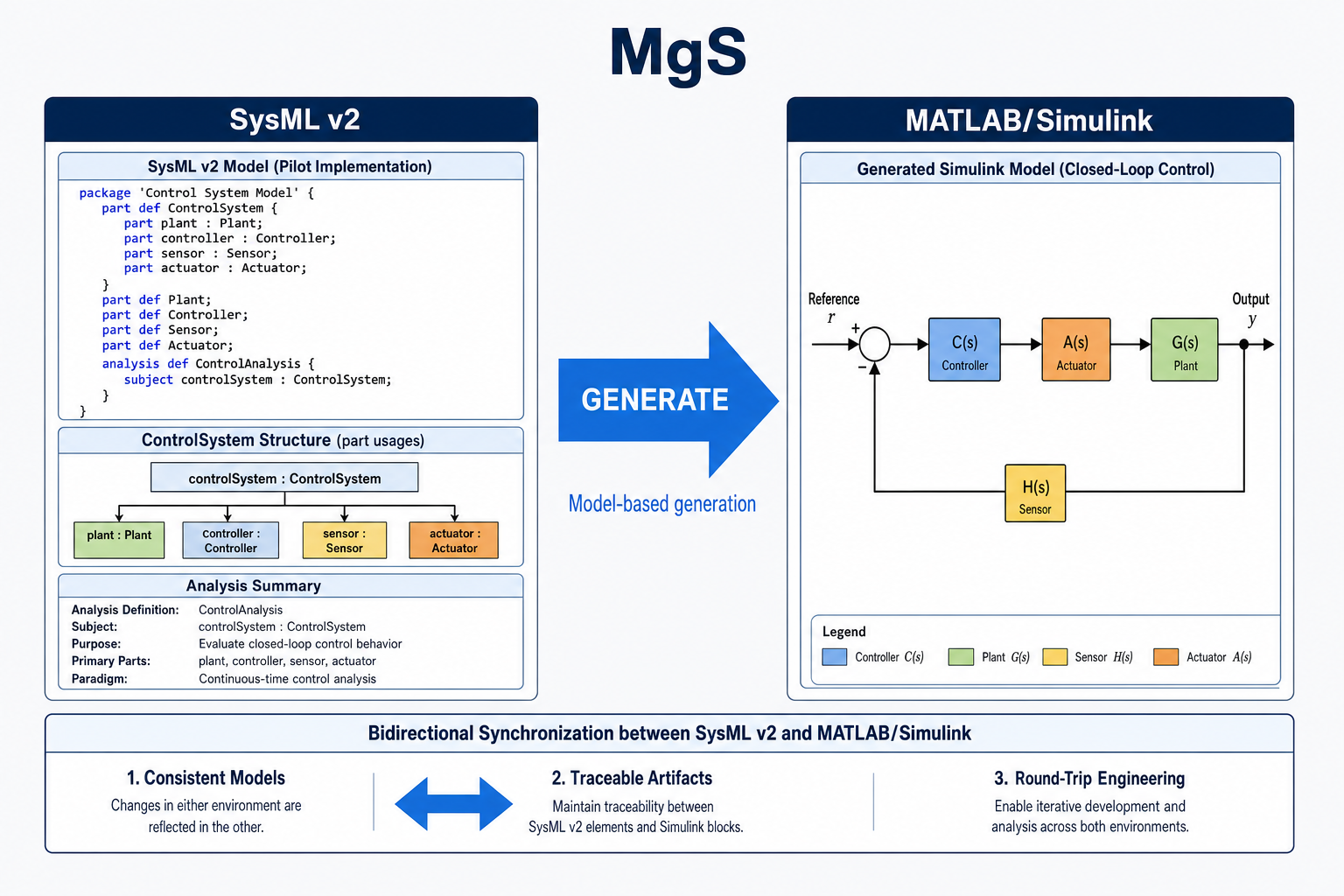

Simulink from SysML elements
Generate Simulink models from SysML elements and keep simulation and the systems model in sync as designs change.
Problem
What it solves
Simulation models drift from the systems architecture when updates are manual and one-directional.
How it works
Using MgS
1
Generate from SysML
Create Simulink models directly from State-Space Representations and related SysML elements.
2
Simulate
Run simulations in MATLAB/Simulink using models derived from your architecture.
3
Stay synchronized
Changes in Simulink can update the SysML model, keeping both views consistent.
